Product Introduction
SIP4KA12 is a lightweight single-lens gimbal with a three-axis orthogonal design. Advanced AI recognition technology and multi-template filtering tracking technology enable it to adapt to the movement and effective zoom of the target during tracking, presenting more intricate target details. The integrated structure of the control module enhances the synchronization efficiency between the drone platform and the gimbal, ensuring that the platform can operate stably in complex scenarios and provide users with outstanding performance experience.
Product Characteristics
● 4K image quality, support 10x optical zoom and 40x hybrid zoom

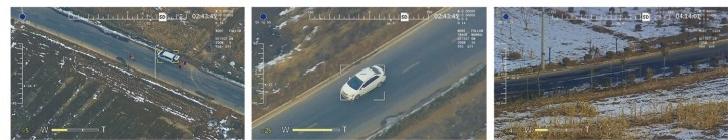

●It has target detection, recognition, tracking, and positioning functions, and has the ability to
track and re-find a target that has been obstructed for 3 seconds.
●The direction can rotate 360° infinitely, and it is compatible with various models.
●With one key vertical look down, one key back function.
TECHNICAL PARAMETER
ITEM NAMES | Parameter | ITEM NAMES | Parameter |
Material | Aviation aluminum alloy, nylon | Angular operating range | 360⁰ ×N(Yaw)-120°~30°(Pitch)±70°(Roll) |

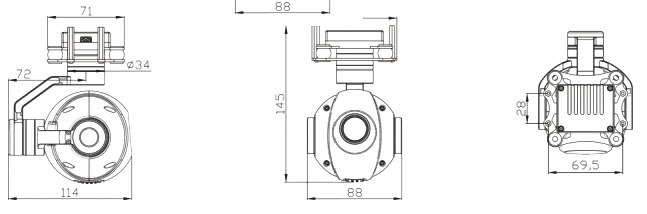

Dimensions | 114(length)×88(width )×145(height )mm | PTZ control mode | Speed control; Angle control |
Weight | 460±10g | Control signal mode | S.BUS、TTL serial port communication、TCP、UDP |
Zoom | 10x optical zoom / 40x hybrid zoom | Video output format | 1920*1080@30fps |
Video output format | 4K | Video storage format | MP4 |
Target tracking mode | Identification tracking, feature tracking | Image storage format | JPG |
